Dengue cases screening

Raphael Saldanha et al.

Inria (FR), LNCC (BR)

2024-11-05

The case itinerary

  • After a clinical assessement, a patient can be pointed as a suspected dengue/chikungunya case, based on its symptoms, clinical conditions and history (anamnesis)
    • Fever, arthralgia, myalgia, headache, and retroorbital pain
  • The suspected case is immediately notified to the health authorities (SINAN dataset)
  • The diagnosis must be verified to adequate the health treatment

Possible case classifications

  • Suspected case
  • Confirmed case: dengue or chikungunya
  • Discarded case

How a case is confirmed or discarded?

  • On normal conditions
    • Primarly by laboratory exams (blood tests)
    • Nucleic acid amplification tests, serologic tests, and IgG antibody tests.
  • On outbreaks
    • By laboratorial test, if available
    • Or by the doctor’s judgment, based on symptoms, clinical conditions and the patient history

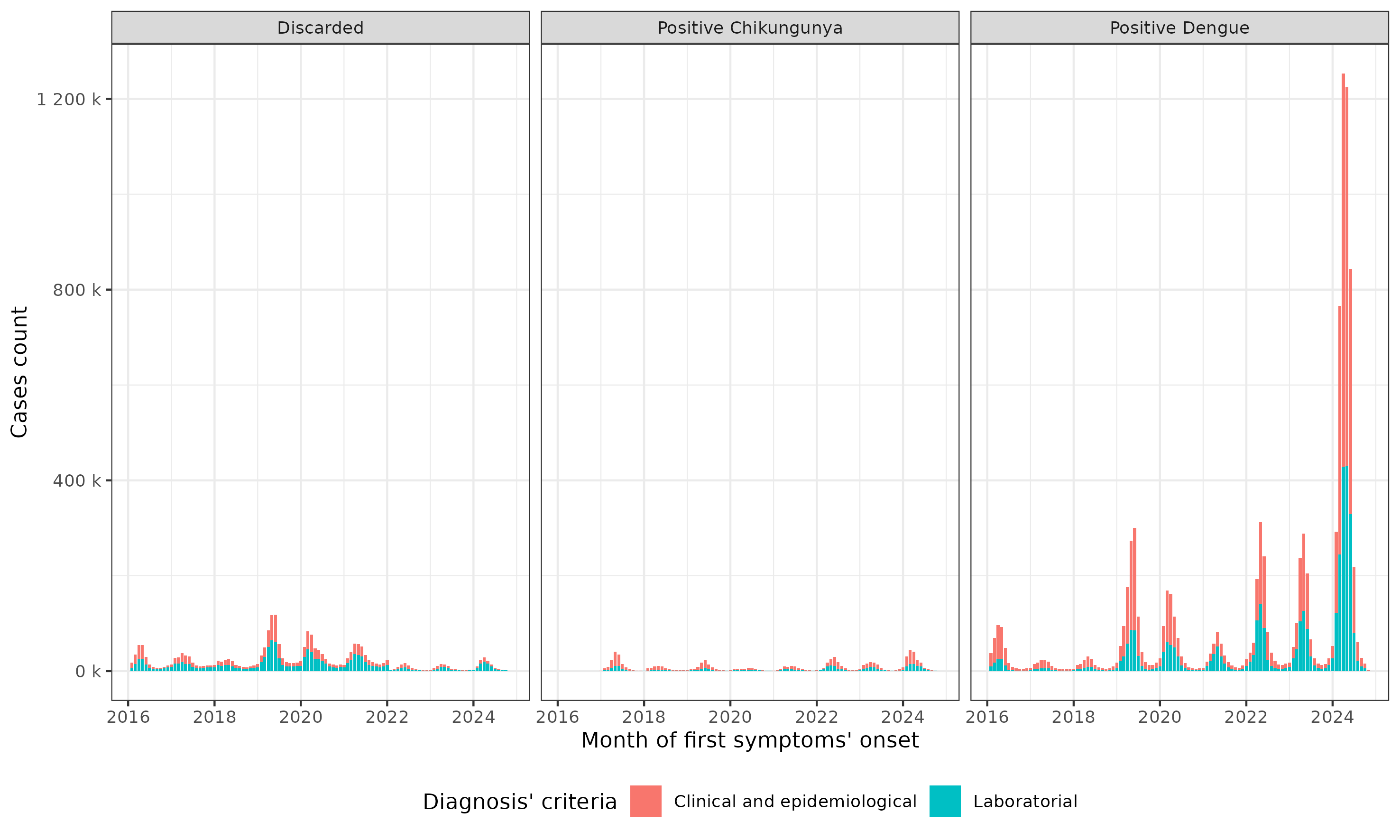

Dengue cases diagnosis and criteria

Dengue cases diagnosis and criteria

Diagnosis Laboratory Clinical
Positive Dengue 3,624,320 6,130,030
Positive Chikungunya 300,429 502,977
Discarded 1,304,000 1,052,512

Research objectives

  • Train a ML model to predict a patient’s diagnosis based on its symptoms and clinical conditions
  • Evaluate the performance of the model for cases screening during dengue outbreaks
  • Assess the human performance on diagnosis based on the trained model

Previous works

  • Neto (2022) present a systematic literature review on ML and DL techniques to support clinical diagnoses of arboviral diseases.
    • Current research is focused on binary classification of Dengue diagnosis.
    • None of the reviewed papers were trained to predict Dengue and or Chikungunya diagnosis with Brazilian data
    • Maximum number of records of 14,019 was used for training and testing ML models

Previous works

  • Tabosa (2022) present a comparative study of ML techniques for multi-class classification of arboviral diseases
    • Data restricted to Amazonas and the city of Recife, Pernambuco, from 2015 to 2020.
    • Gradient-boosting learners offered the best performance
    • No learner achieved an accuracy above 70%

Previous works

  • Bohm (2024) present a model for binary classification with 98% accuracy
    • Data restricted to Rio de Janeiro and Minas Gerais states
    • Sample of 20,000 records
    • Possible discrepancies between paper methodology and available data from author

Study design

  1. Create two datasets: \(D_a\) with cases that received diagnosis from laboratorial exams, and \(D_b\) containing only cases diagnosed solely on symptoms and clinical conditions
  2. Train different ML learners on \(D_a\) based on the patient’s symptoms and clinical conditions
  3. Model evaluation
  4. Apply the selected model on \(D_b\)
  5. Compare the results

Preliminary results

  • \(D_a\) with 50,000 ramdom samples for each class: positive Dengue, positive Chikungunya, and discarded cases
  • Training dataset with 3/4 proportion, 5 folds
  • Learners: XG-Boosting, Random Forest, KNN, MLP, Logistic Regression, and Regularized Discriminant Analysis (RDA) model
  • Three cumulative model especifications: symptoms and clinical conditions, weather season and geographical region (state)

Best model, so far

  • Complete model especification
  • XG-Boost learner
  • 64,28% accurracy
  • 64,28% sensibility
  • 82,14% specificity
  • 81,73% ROC AUC

Confusion matrix

                      Truth
Prediction             Discarded Positive Chikungunya Positive Dengue
  Discarded                 5440                 1177            2415
  Positive Chikungunya      2788                 9942            1362
  Positive Dengue           4272                 1381            8723

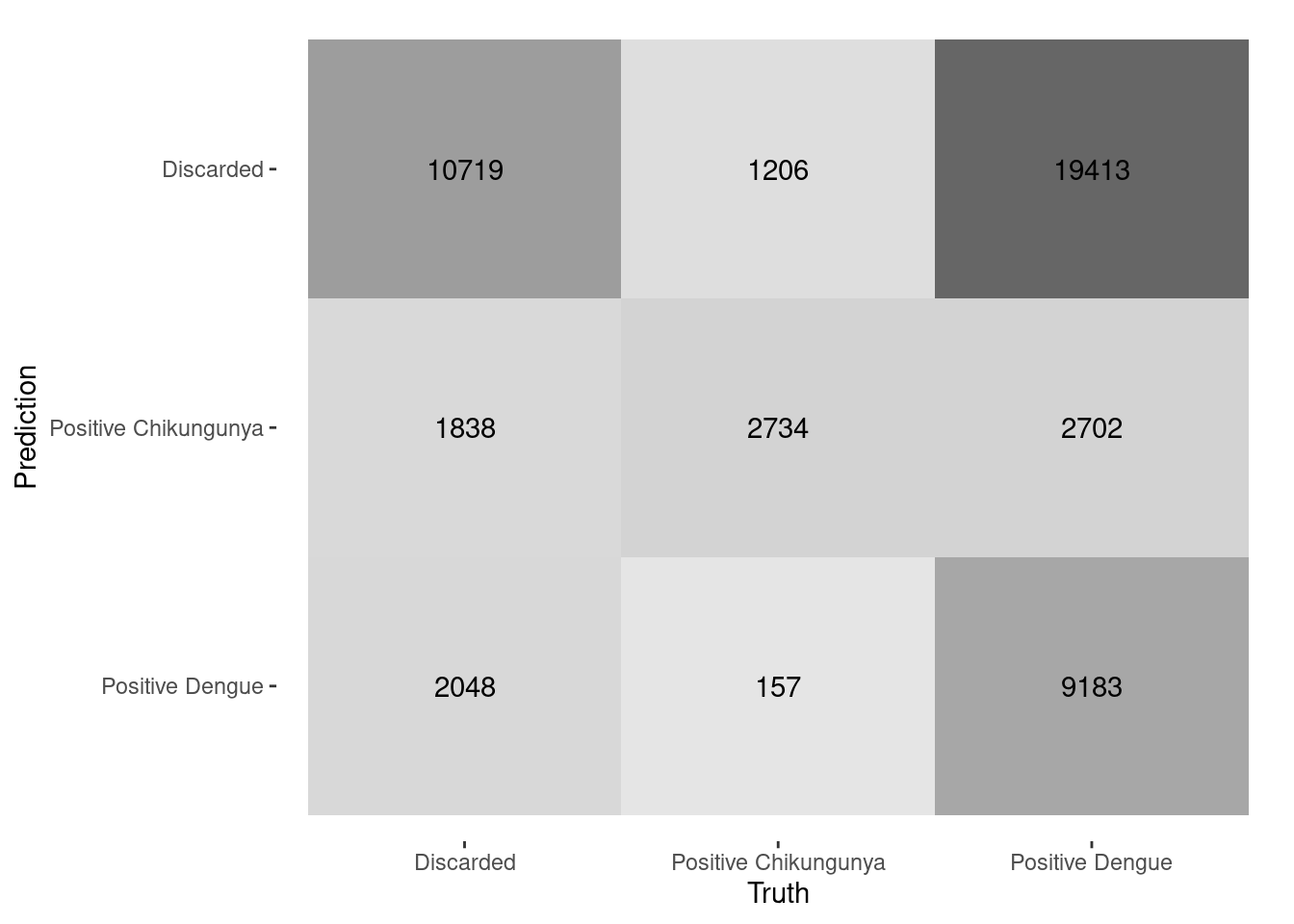

Human vs machine

Thoughts

  • Sensitivity: ability to designate an individual with disease as positive
  • Specificity: ability to designate an individual who does not have a disease as negative
  • For cases screening, a high specificity is desired: ruled-in cases can be directed to laboratory diagnosis for confirmation

Strenghts of the paper, so far

  • Country-wide representative sample
  • Relatively high specificity model
  • More realistic discussion on ML models for cases screening
  • New discussion on human performance
